Productdetails:
|
| Grootte: | 88 maal 30 maal 24.6 | Materiaal: | Roestvrij staal |
|---|---|---|---|
| Montage-type: | met draad | Weerstand: | Bij 20℃ 4Ω±10% |
| Nominale Spanning: | DC24V | Doel: | slepen |
| Curren: | 0.85A | Insulaitonniveau: | Klasse H (180°) |
| Temperatuurbereik: | -5°C-45°C | Materiaaltype: | Zachte magnetische materialen |
| Gebruik van het product: | slepen | Type: | Elektromagnetische |
| Kleur: | Zilver | Portgrootte: | Aangepast |
| Isolatieweerstand: | 50MΩ MIN, DC500V |

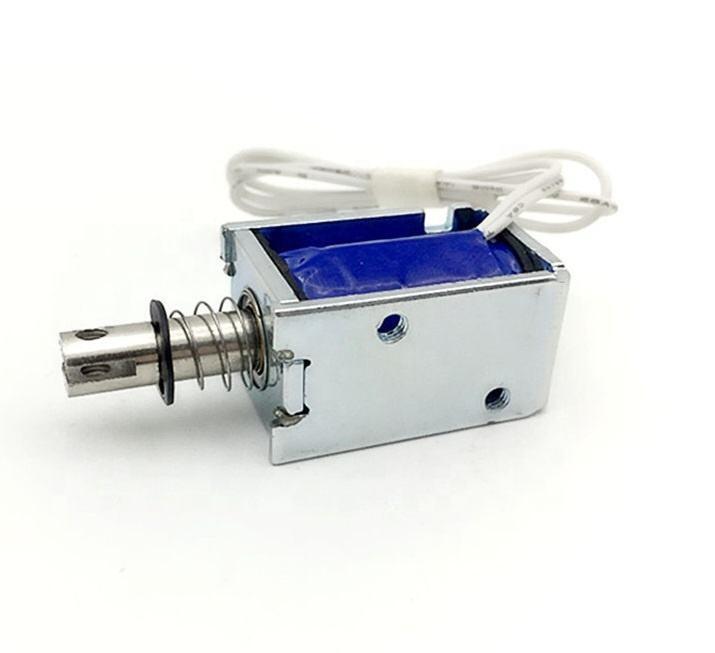

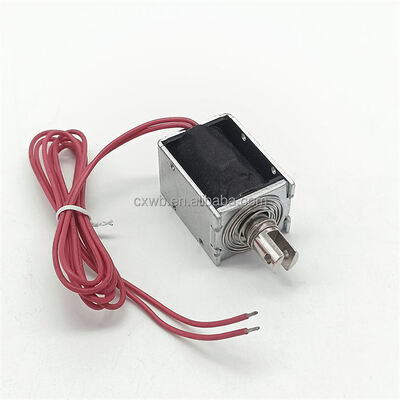

U1253 Open Frame Solenoid 0-20N Force Strong Push Pull Solenoid 0-12mm Storke Solenoid
Push Pull Solenoid
1. Push and pull type optional, linear motion, stroke optional, plunger spring reset (also you can choose not) , Dc power supply, Mini size, standard model voltage have 6v/12v/24v optional, we can custom the voltage as you need.
2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
4. Open frame structure with mounting holes, accepted custom as you needed.
| Our Product | circular holding electromagnet, square holding electromagnet, open frame solenoid, tubular solenoid, keep solenoid, electromagnet lock, solneoid lock |
| MOQ | 2 pcs, small orders can be acceptable if we have stocks of this product |
| Packaging | carton, customize according your requirement |
| Delivery Time | shipped in 5-20 days after payment (decided by the order quantity and stock) |
| Supply Ability | 5000 pcs per week |
| Payment Terms | T/T, paypal, etc. |
| Shipping | sea freight, air freight, express (DHL, UPS, FEDEX, EMS and etc. ) |
Q: Are tiy trading company or manufacturer?
A: We are original factory.
Q: How to choose a solenoid/electromagnet?
A: Following parameters should be provided: voltage(DC/AC), power, current, resistance, stroke, force,dimension limit, force, residual force, duty cycle and etc.
Q: How long is your delivery time?
A: Generally is 3-10 days if the goods are in stock and sometimes need 15-20 days if goods are not in stock. It also depends on the order quantity.
Q: What is terms of payment?
A: If payment <= $1000, it would need 100% payment in advance and it can be 50% payment in advance if payment > $1000.
Q: Is there any extra charges if we want you to print our logo or company name on your products or packaging?
A: Threre's no extra fee. Please offer us the logo files and we'll make it well on your peoduct.
